ThePatrons Reader Config - Device Initialization

Once the reader already installed with base firmware, the following are the next installation steps that must be carried out:

1. Master Credentials

   To install master credentials please follow the steps below :

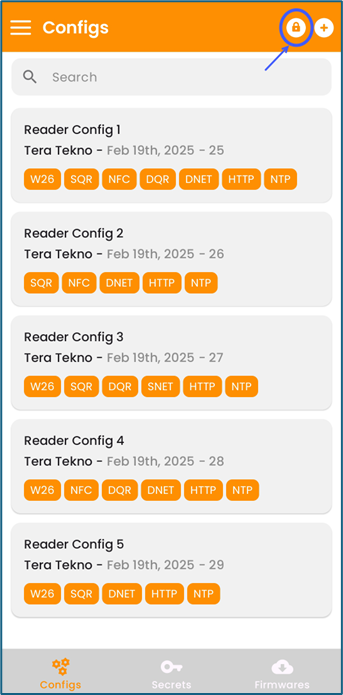

   -    Tap on padlock icon in the top right corner

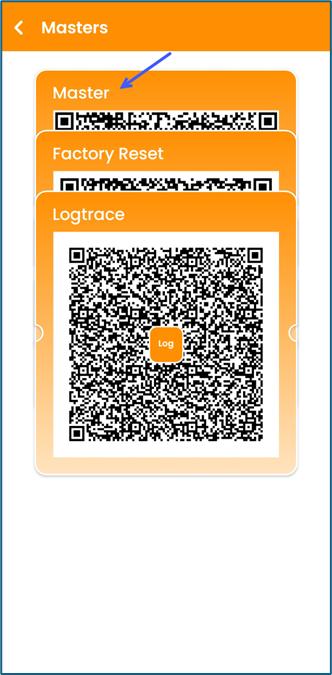

   - Tap on master QR code

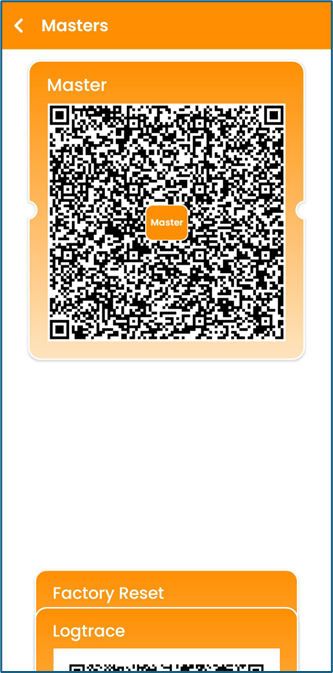

   - Scan master QR code to the reader




2. Updated Firmware

   To install the updated firmware please follow the steps below :

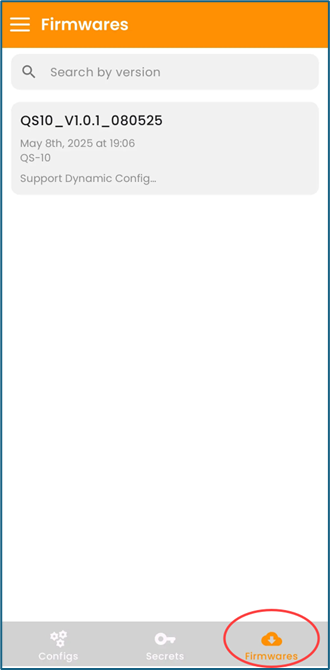

   -    Tap on firmwares

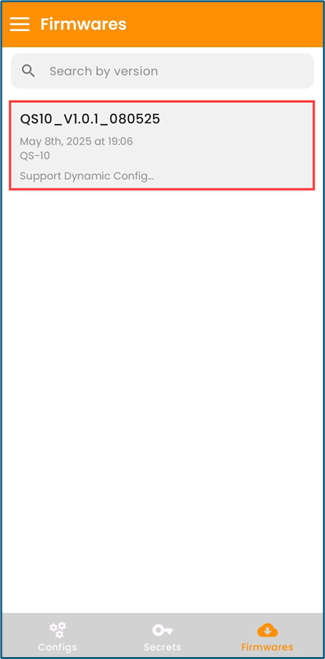

   - Tap on the firmware that you want to install

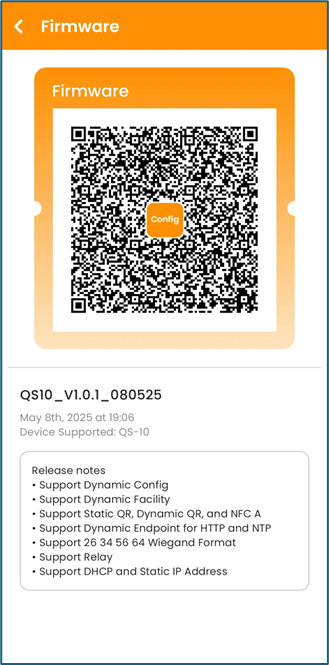

   - Scan the firmware QR code to the reader


   - For device QS-10, if you just scan the firmware QR, after the beep sounds 2 times, please wait until the device light flashes (restart), then wait again until the beep sounds 3-4 times then it's ready.



3. Facility Credentials

   To install facility credentials, please follow the steps below :

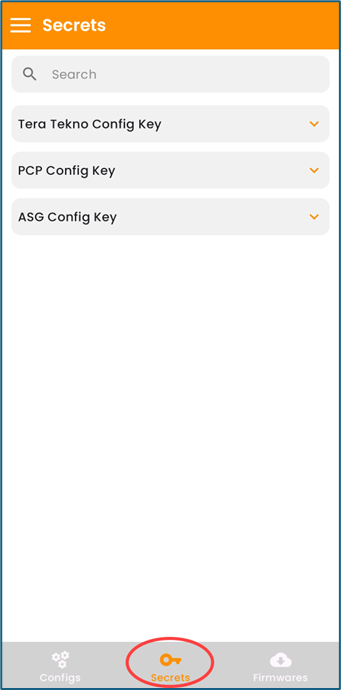

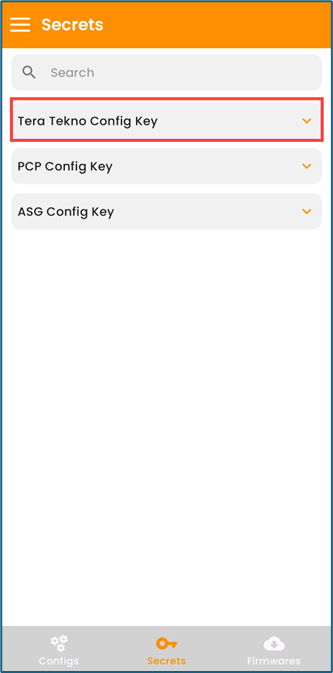

   -    Tap on “Secrets”



   - Tap on Facility

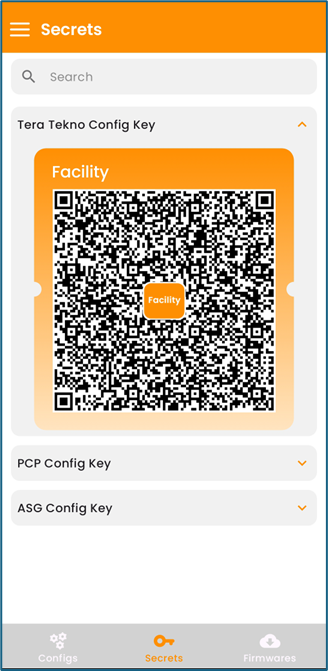

   - Scan the facility QR code to the reader





4. Reader Config

   To configure the reader, please follow the steps below :

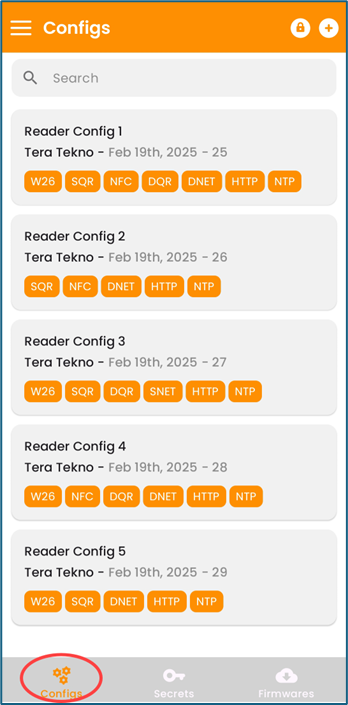

   -    Tap on “Configs”

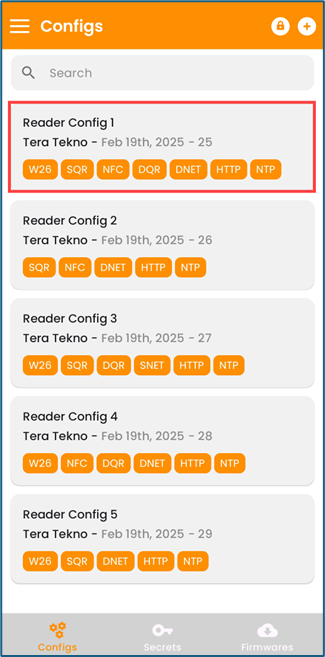

   - List config will be displayed, tap on the reader config

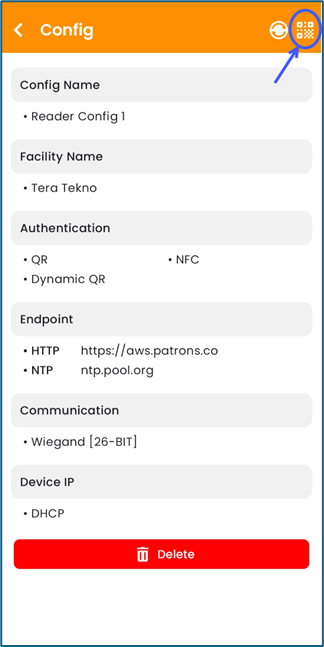

   - Config detail will be displayed, tap on QR code icon in the top right corner

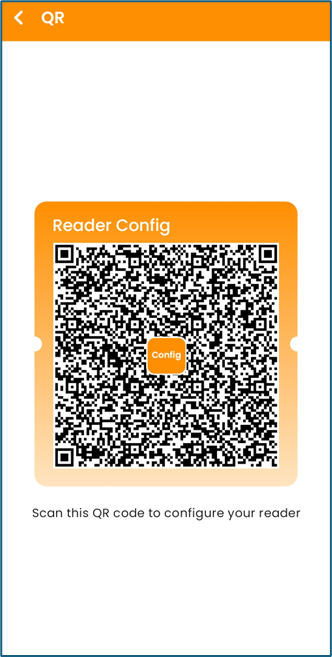

   - Scan the reader config QR code to the reader
