Door - Add Door

On the left side menu, go to Setting > Building Management > Doors.

The Add Door page is used to register a new door into the system. Each door must be linked to its corresponding building, floor, and area, and configured with the correct access control device.

Step by step guide to add door :

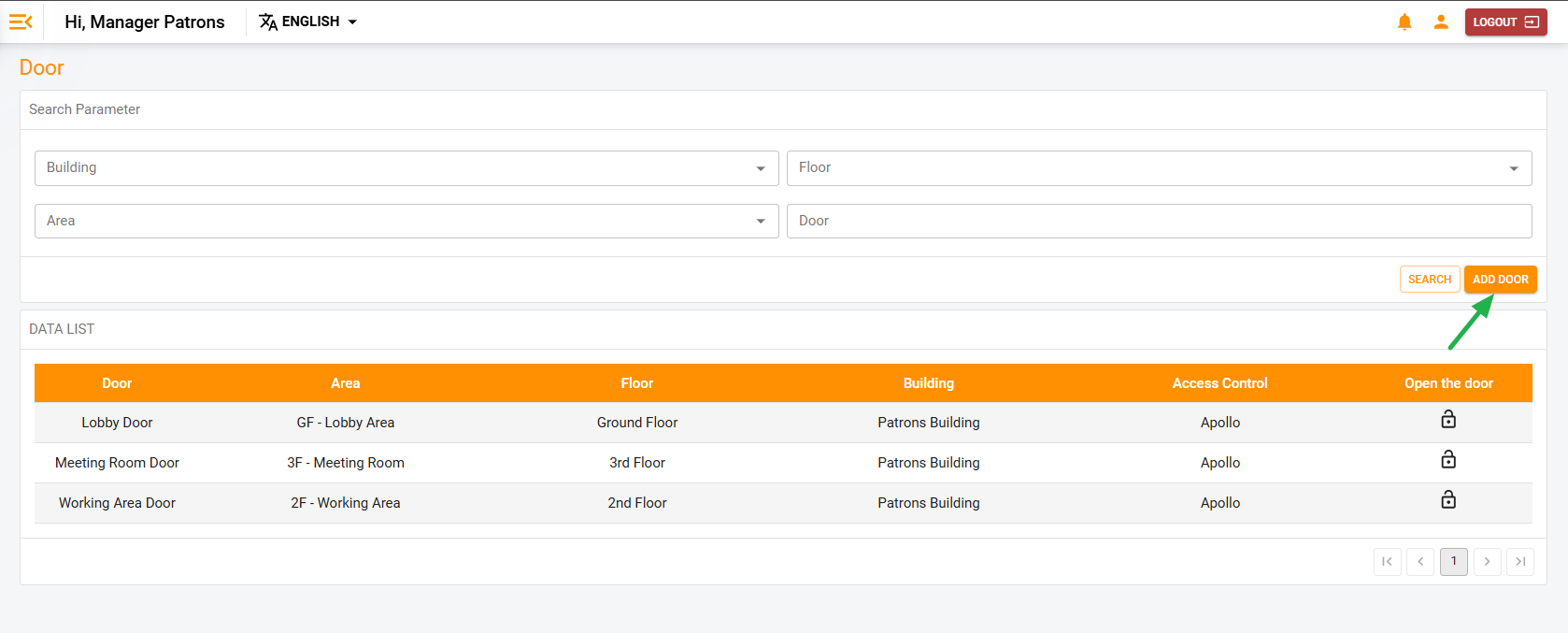

• Click the Add Door button on the right of the Door page.

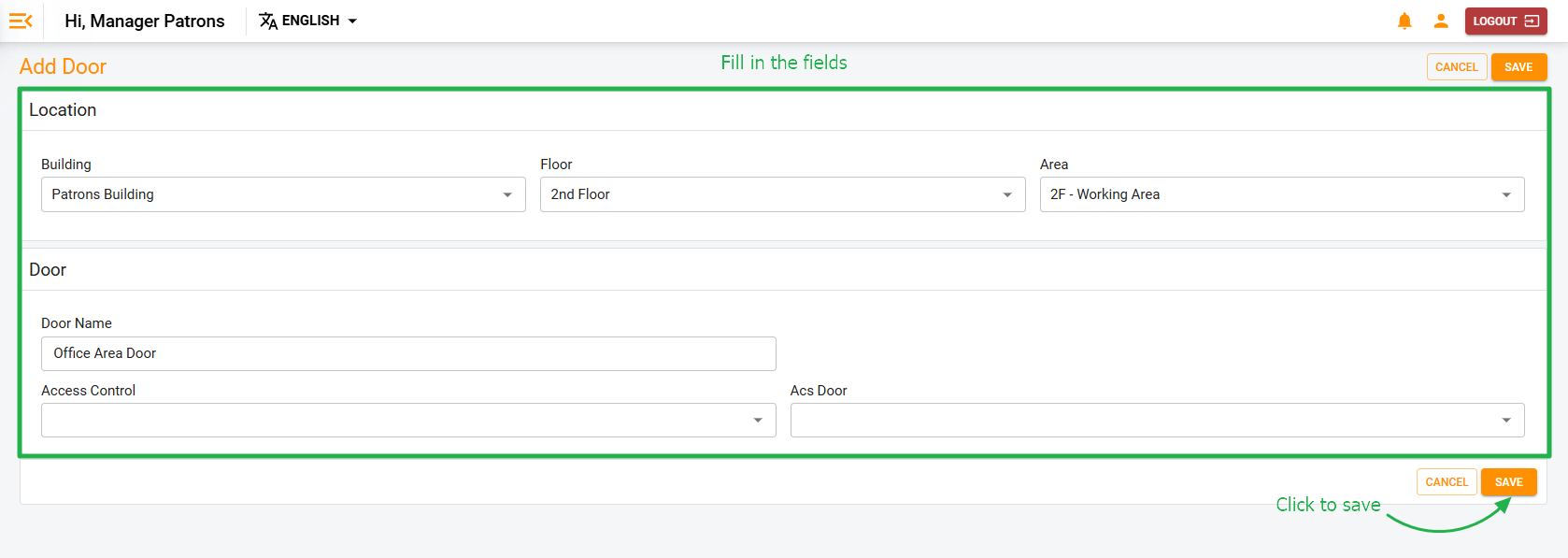

• Fill in the fields :

  Field Name	Description	Mandatory
  Location [Select the location of the door]
  Building	Choose the building where the door is located.	Y
  Floor	Select the floor within the building.	Y
  Area	Select the specific area within the floor.	Y
  Door Information [Enter details about the door configuration]
  Door Name	Enter a descriptive name for the door (e.g., Lobby Door).	Y
  Access Control	Select the access control system that manages this door (e.g., Apollo).	Y
  Door	Enter the identifier used by the Access Control System for this door.	Y

• Click Save to confirm and create the new building

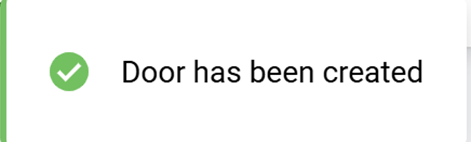

• The system will process the data, notification success will popped up.
